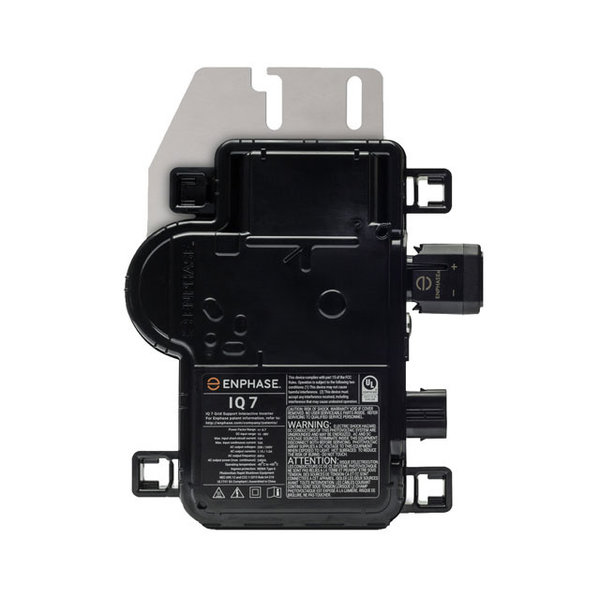

Enphase IQ 7, IQ 7+, and IQ 7X Microinverters

1 Ratings
Type Three-phase
Power Range 235 W - 350 W + ¹/ 320 W - 460 W + 1
Region Australia
Model No.
IQ7-60-2-INT IQ7PLUS-72-2-INT IQ7X-96-2-INT
Warranty
Input side (DC)
Maximum DC input power for each MPPT (Pmpptmax)
235 W - 350 W + ¹ 235 W - 440 W + 1, 2 -
Absolute maximum DC input voltage (Vmax)
48 V 60 V 79.5 V
Start-up DC input voltage (Vstart)
22 V 22 V 33 V
Maximum DC input current (Idcmax)
15 A 15 A 10 A
MPPT input DC voltage range
16 V - 48 V 16 V - 60 V 25 V - 79.5 V
Rated DC input power (Pdcr)
II II II
Output side (AC)
AC voltage range
184-276 V 184-276 V 184-276 V
Nominal AC voltage
230V 230V 230V
Rated AC grid voltage
184 V 184 V 184 V
Maximum AC output current
1.04 A 1.26 A 1.37 A
Output frequency range
45 - 55 Hz 45-55 Hz 45-55 Hz
Rated output frequency
50 Hz 50 Hz 50 Hz
Nominal power factor and adjustable range
1.0 1.0 1.0
Weighted efficiency (EURO/CEC)
96.5 % 96.5 % 96.5 %
General Data
Dimensions (H/W/D)
212 mm x 175 mm x 30.2 mm 212 mm x 175 mm x 30.2 mm 212 mm x 175 mm x 30.2 mm
Weight
1.08 kg 1.08 kg 1.08 kg
Operating Temperature -40ºC to +65ºC
Protection Class IP67
Transformer Transformerless
Humidity 4% to 100% (condensing)
Protection Features Communication,Power Line Communication (PLC),Monitoring,Enlighten Manager and MyEnlighten monitoring options Compatible with Enphase Envoy-S
