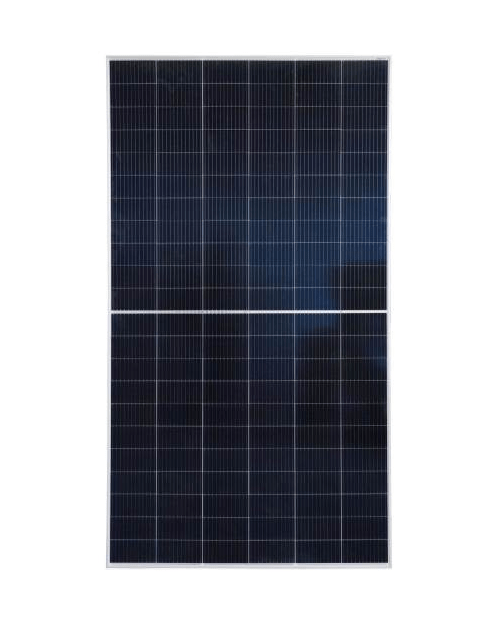

Model No.	CHSM60M(DG)/F-BH-580 CHSM60M(DG)/F-BH -585 CHSM60M(DG)/F-BH-590 CHSM60M(DG)/F-BH-595 CHSM60M(DG)/F-BH -600
Warranty
Product	12-year Warranty for Materials and Processing
Performance	30-year Warranty for Extra Linear Power Output
Electrical Data at STC
Maximum Power (Pmax)	580Wp 585W p 590Wp 595Wp 600Wp
Voltage at Maximum Power (Vmpp)	33.80 V 34.00 V 34.20 V 34.40 V 34.61V
Current at Maximum Power (Impp)	17.16 A 17.21 A 17.26A 17.30A 17.34 A
Open Circuit Voltage (Voc)	40.90 V 41.10 V 41.30 V 41.50 V 41.70 V
Short Circuit Current (Isc)	18.21 A 18.26 A 18.31 A 18.36 A 18.41 A
Panel Efficiency	20.5% 20.7% 20.8% 21.0% 21.2%
Power Tolerance (Positive)	0~+5W 0~+5W 0~+5W 0~+5W 0~+5W
Power Tolerance (Negative)	- - - - -
Electrical Data at NOCT
Maximum Power (Pmax)	619 Wp 649 Wp 678 Wp 708 Wp 737 Wp
Voltage at Maximum Power (Vmpp)	34.20 V 34.20 V 34.21 V 34.21 V 34.22 V
Current at Maximum Power (Impp)	18.12 A 18.99 A 19.85 A 20.71 A 21.58 A
Open Circuit Voltage (Voc)	41.30 V 41.30 V 41.31 V 41.31 V 41.32 V
Short Circuit Current (Isc)	19.23 A 20.14 A 21.06 A 21.97 A 21.2%
Panel Efficiency	20.5% 20.7% 20.8% 21.0% 21.2%
Power Tolerance (Positive)	0~+5W 0~+5W 0~+5W 0~+5W 0~+5W
Power Tolerance (Negative)	- - - - -
Temperature	43±2°C 43±2°C 43±2°C 43±2°C 43±2°C
Thermal Ratings
Operating Temperature Range	-40℃~+85℃
Temperature Coefficient of Pmax	- 0.34%/°C
Temperature Coefficient of Voc	- 0.25%/°C
Temperature Coefficient of Isc	+ 0.04%/°C
Maximum Ratings
Maximum System Voltage	1500VDC
Series Fuse Rating	35 A
Material Data
Panel Dimension (H/W/D)	2172 x 1303 x 35 mm
Weight	35.9 kg
Cell Type	Monocrystalline PV Module
Cell Size	-
Cell Number	-
Glass Type	Aluminum, silver anodized
Glass Thickness	Solar Glass (Toughened Solar Glass)
Frame Type	2.0 mm
Junction Box Diodes	3
Junction Box Protection Class	IP 68
Connector Type	Genuine MC4 Portrait: 350 mm Landscape: 1400 mm
