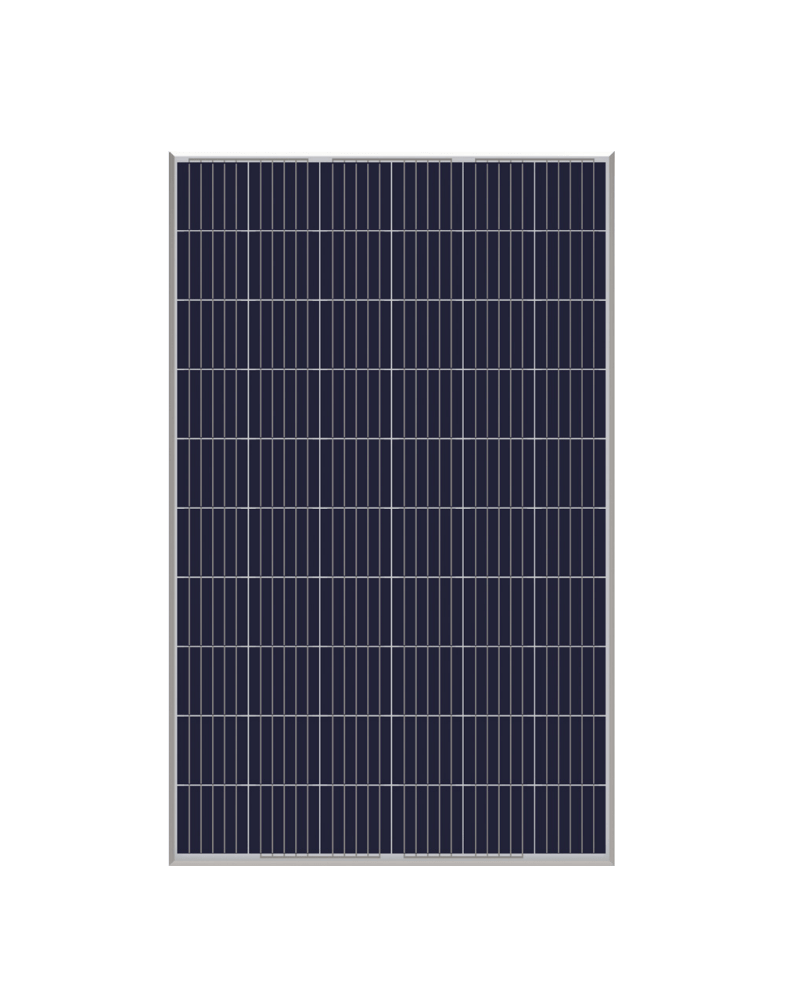

YINGLI SOLAR Polycrystalline YGE 72 Cell 330W | YL330P-35b
| Type | Polycrystalline silicon |
| Power Range | 330W |
| Region | China |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 25
| Model No. |
|
|
|---|---|---|
| Warranty | ||
| Product | 10-year Product Warranty on Materials and Workmanship | |
| Performance | 25-year Linear Power Performance Warranty to 80.70% | |
| Electrical Data at STC | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Electrical Data at NOCT | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Temperature |
|
|
| Thermal Ratings | ||
| Operating Temperature Range | −40°C - +85°C | |
| Temperature Coefficient of Pmax | -0.42%/°C | |
| Temperature Coefficient of Voc | -0.32%/°C | |
| Temperature Coefficient of Isc | 0.05%/°C | |
| Maximum Ratings | ||
| Maximum System Voltage | 1000VDC | |
| Series Fuse Rating | 15 A | |
| Material Data | ||
| Panel Dimension (H/W/D) | 1960 x 992 x 40mm | |
| Weight | 22 kg | |
| Cell Type | Polycrystalline silicon | |
| Cell Number | 72 cells (6 × 12) | |
| Glass Type | Anti-reflection coated, high transmission tempered glass | |
| Glass Thickness | 3.2 mm (0.13 inches) | |
| Frame Type | Anodized aluminium alloy | |
| Junction Box Diodes | 3 bypass diodes | |
| Junction Box Protection Class | IP67 | |
| Connector Type | YT08-1S | |
|
