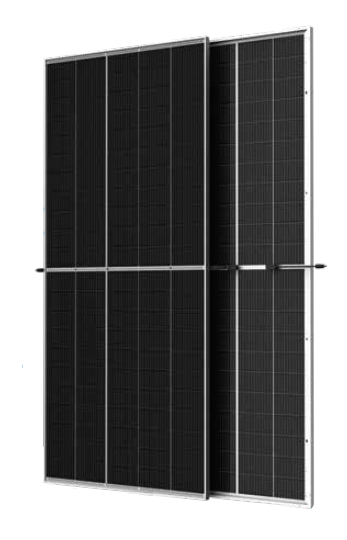

TRINA SOLAR Vertex Bifacial Dual Glass Monocrystalline Module 525W ~ 555W | TSM-XXXDEG19C.20 / TSM-525DEG19C.20 ~ TSM-555DEG19C.20
| Type | Monocrystalline |
| Power Range | 525W ~ 555W |
| Region | China, Vietnam & Thailand |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 21
| Model No. |
|
||||||
|---|---|---|---|---|---|---|---|
| Warranty | |||||||
| Product | 12-year Product Warranty on Materials and Workmanship | ||||||
| Performance | 30-year Linear Power Performance Warranty to 84.95% | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) |
|
||||||
| Voltage at Maximum Power (Vmpp) |
|
||||||
| Current at Maximum Power (Impp) |
|
||||||
| Open Circuit Voltage (Voc) |
|
||||||
| Short Circuit Current (Isc) |
|
||||||
| Panel Efficiency |
|
||||||
| Power Tolerance (Positive) |
|
||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) |
|
||||||
| Voltage at Maximum Power (Vmpp) |
|
||||||
| Current at Maximum Power (Impp) |
|
||||||
| Open Circuit Voltage (Voc) |
|
||||||
| Short Circuit Current (Isc) |
|
||||||
| Panel Efficiency |
|
||||||
| Power Tolerance (Positive) |
|
||||||
| Temperature |
|
||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | −40°C - +85°C | ||||||
| Temperature Coefficient of Pmax | -0.34 %/°C | ||||||
| Temperature Coefficient of Voc | -0.25%/°C | ||||||
| Temperature Coefficient of Isc | 0.04%/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500V DC (IEC) | ||||||
| Series Fuse Rating | 25 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2384 × 1096 × 30mm (93.86 × 43.15 × 1.18inches) | ||||||
| Weight | 32.3 kg (71.2 lb) | ||||||
| Cell Type | Monocrystalline | ||||||
| Cell Number | 110 cells | ||||||
| Glass Type | Heat strengthened glass (White grid glass) | ||||||
| Glass Thickness | 2.0mm (front) + 2.0mm (back) | ||||||
| Frame Type | Anodized aluminium alloy | ||||||
| Junction Box Diodes | 3 bypass diodes | ||||||
| Junction Box Protection Class | IP68 | ||||||
| Connector Type | Staubli MC4 EVO2 / TS4 | ||||||
|
