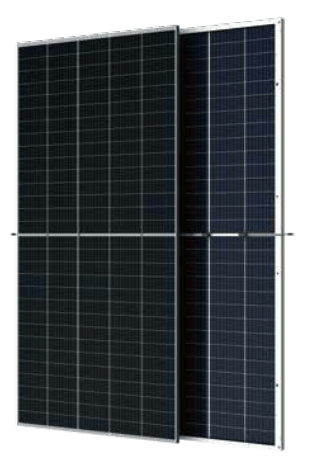

TRINA SOLAR Vertex Bifacial Dual Glass Monocrystalline Module 480W ~ 505W | TSM-XXXDEG18MC.20(II) / TSM-480DEG18MC.20(II) ~ TSM-505DEG18MC.20(II)

1 Ratings
Type Monocrystalline
Power Range 480W ~ 505W
Region China, Vietnam & Thailand
Model No.
TSM-480DEG18MC.20(II) TSM-485DEG18MC.20(II) TSM-490DEG18MC.20(II) TSM-495DEG18MC.20(II) TSM-500 DEG18MC.20(II) TSM-505 DEG18MC.20(II)
Warranty
Product 12-year Product Warranty on Materials and Workmanship
Performance 30-year Linear Power Performance Warranty to 85%
Electrical Data at STC
Maximum Power (Pmax)
480 WP 485 WP 490 WP 495 WP 500 WP 505 WP
Voltage at Maximum Power (Vmpp)
42.2 V 42.5 V 42.8 V 43.1 V 43.4 V 43.7 V
Current at Maximum Power (Impp)
11.38 A 11.42 A 11.45A 11.49 A 11.53 A 11.56 A
Open Circuit Voltage (Voc)
50.7 V 50.9 V 51.1 V 51.3 V 51.5 V 51.7 V
Short Circuit Current (Isc)
11.97 A 12.01 A 12.05A 12.09 A 12.13 A 12.17 A
Panel Efficiency
19.9% 20.1 % 20.3% 20.5 % 20.7% 21.0%
Power Tolerance (Positive)
0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5
Electrical Data at NOCT
Maximum Power (Pmax)
362WP 366WP 369 WP 373 WP 377WP 381 WP
Voltage at Maximum Power (Vmpp)
38.7 40.0 V 40.2 V 40.5 V 40.7 V 41.0 V
Current at Maximum Power (Impp)
9.11A 9.15 A 9.18 A 9.22 A 9.26 A 9.29 A
Open Circuit Voltage (Voc)
47.7 47.9 V 48.0 V 48.2 V 48.4 V 48.5 V
Short Circuit Current (Isc)
9.65 A 9.68 A 9.71A 9.74A 9.78 A 9.81
Panel Efficiency
19.9% 20.1 % 20.3% 20.5 % 20.7% 21.0%
Power Tolerance (Positive)
0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5 0 ~ +5
Temperature
43°C (±2°C) 43±3°C 43°C (±2°C) 43°C (±2°C) 43°C (±2°C) 43°C (±2°C)
Thermal Ratings
Operating Temperature Range −40°C - +85°C
Temperature Coefficient of Pmax -0.34 %/°C
Temperature Coefficient of Voc -0.25%/°C
Temperature Coefficient of Isc 0.04%/°C
Maximum Ratings
Maximum System Voltage 1500 V DC (IEC)
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 2187 × 1102 × 35mm (86.10 × 43.39 × 1.38inches)
Weight 30.1 kg (66.4 lb)
Cell Type Monocrystalline
Cell Number 150 cells
Glass Type High transmission, AR coated heat strengthened glass
Glass Thickness 2.0mm (front) + 2.0mm (back)
Frame Type Anodized aluminium alloy
Junction Box Diodes 3 bypass diodes
Junction Box Protection Class IP68
Connector Type Staubli MC4 EVO 2 / Trina Solar TS4
