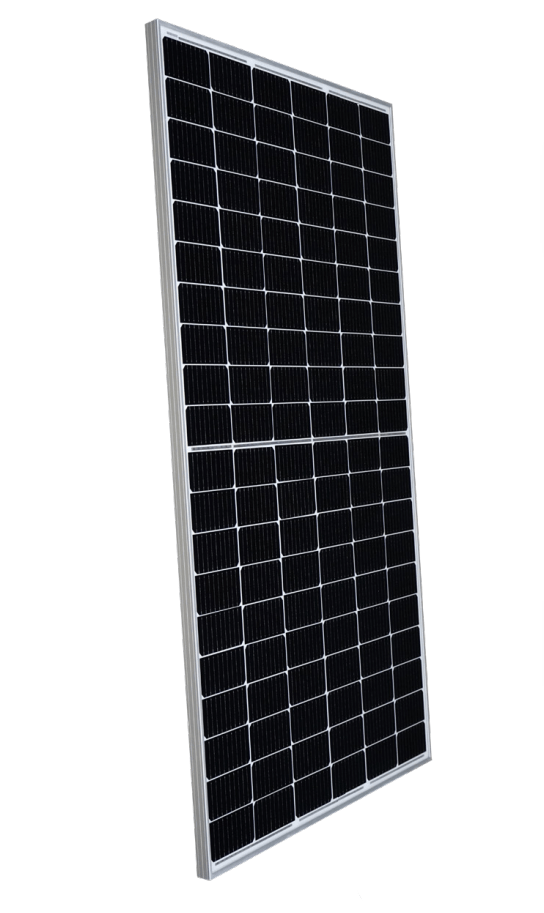

SUNTECH Monocrystalline Half-cell Monofacial Ultra V Mini FULL BLACK 390W ~ 410W | STP390S-C54/Umhb / STP395S-C54/Umhb / STP400S-C54/Umhb / STP405S-C54/Umhb / STP410S-C54/Umhb
| Type | Monocrystalline silicon |
| Power Range | 390W ~ 410W |
| Region | China & Vietnam |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 17
| Model No. |
|
|||||
|---|---|---|---|---|---|---|
| Warranty | ||||||
| Product | 15-year Product Warranty on Materials and Workmanship | |||||
| Performance | 25-year Linear Power Performance Warranty to 84.80% | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) |
|
|||||
| Voltage at Maximum Power (Vmpp) |
|
|||||
| Current at Maximum Power (Impp) |
|
|||||
| Open Circuit Voltage (Voc) |
|
|||||
| Short Circuit Current (Isc) |
|
|||||
| Panel Efficiency |
|
|||||
| Power Tolerance (Positive) |
|
|||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) |
|
|||||
| Voltage at Maximum Power (Vmpp) |
|
|||||
| Current at Maximum Power (Impp) |
|
|||||
| Open Circuit Voltage (Voc) |
|
|||||
| Short Circuit Current (Isc) |
|
|||||
| Panel Efficiency |
|
|||||
| Power Tolerance (Positive) |
|
|||||
| Temperature |
|
|||||
| Thermal Ratings | ||||||
| Operating Temperature Range | −40°C - +85°C | |||||
| Temperature Coefficient of Pmax | -0.36%/°C | |||||
| Temperature Coefficient of Voc | -0.304%/°C | |||||
| Temperature Coefficient of Isc | 0.050%/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1000 V DC( IEC ) | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1724 × 1134 × 35mm (67.9 × 44.6 × 1.4 inches) | |||||
| Weight | 22.1 kgs (48.7 lbs) | |||||
| Cell Type | Monocrystalline silicon | |||||
| Cell Size | 166mm x 166mm | |||||
| Cell Number | 108 cells (6 × 18) | |||||
| Glass Type | Tempered glass | |||||
| Glass Thickness | 3.2 mm (0.13 inches) | |||||
| Frame Type | Anodized aluminium alloy | |||||
| Junction Box Diodes | 3 bypass diodes | |||||
| Junction Box Protection Class | IP68 | |||||
| Connector Type | Genuine MC4 , TL-Cable 01 | |||||
|
