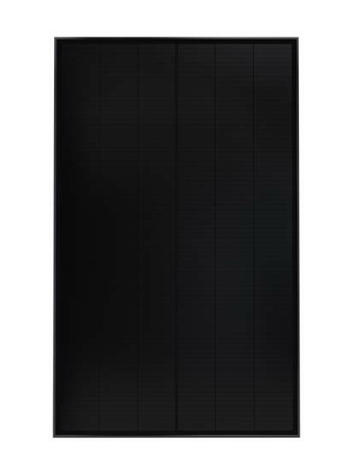

SUNPOWER Performance P19 Monocrystalline PERC BLACK 310W ~ 335W | SPR-P19-310-BLK / SPR-P19-315-BLK / SPR-P19-320-BLK / SPR-P19-325-BLK / SPR-P19-330-BLK / SPR-P19-335-BLK

1 Ratings
Type Monocrystalline PERC
Power Range 310W ~ 335W
Region Mexico, Malaysia and the Philippines
Model No.
SPR-P19-310-BLK SPR-P19-315-BLK SPR-P19-320-BLK SPR-P19-325-BLK SPR-P19-330-BLK SPR-P19-335-BLK
Warranty
Product 25-year Product Warranty on Materials and Workmanship
Performance 25-year Linear Power Performance Warranty
Electrical Data at STC
Maximum Power (Pmax)
310 WP 315 W 320 WP 330 WP 330 WP 335 W
Voltage at Maximum Power (Vmpp)
35.4 V 43.7 V 36.4 V 44.4 V 37.2 V 37.5 V
Current at Maximum Power (Impp)
8.76 A 8.77 A 8.79 A 8.80 A 8.87 A 8.94 A
Open Circuit Voltage (Voc)
43.2 V 35.9 V 43.9 V 36.9 V 44.6 V 44.8 V
Short Circuit Current (Isc)
9.28 A 9.33 A 9.35 A 9.37 A 9.44 A 9.51 A
Panel Efficiency
18.4% 18.7% 19.0% 19.3% 19.6% 19.9%
Power Tolerance (Positive)
+5/0% +5/0% +5/0% +5/0% +5/0% +5/0%
Electrical Data at NOCT
Panel Efficiency
18.4% 18.7% 19.0% 19.3% 19.6% 19.9%
Power Tolerance (Positive)
+5/0% +5/0% +5/0% +5/0% +5/0% +5/0%
Thermal Ratings
Operating Temperature Range −40°C - +85°C
Temperature Coefficient of Pmax −0.37% / °C
Temperature Coefficient of Voc −0.29% / °C
Temperature Coefficient of Isc 0.05% / °C
Maximum Ratings
Maximum System Voltage 1000 V IEC
Series Fuse Rating 18 A
Material Data
Panel Dimension (H/W/D) 1690 x 998 x 40mm
Weight 18.7 kg
Cell Type Monocrystalline PERC
Glass Type High-transmission tempered anti-reflective
Glass Thickness 3.2mm
Frame Type Class 1 black anodized (highest AAMA rating)
Junction Box Diodes 3 bypass diodes
Junction Box Protection Class IP67
Connector Type Multi-Contact (MC4)
