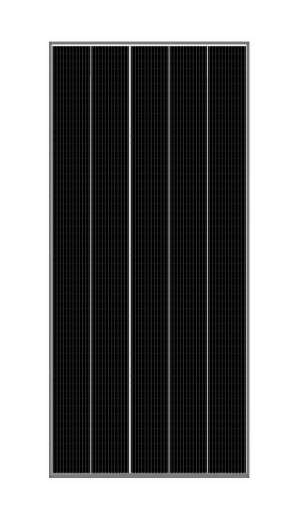

SUNPOWER Performance 6 COM Monocrystalline PERC 535W ~ 550W | SPR-P6-535-COM-M-BF / SPR-P6-540-COM-M-BF / SPR-P6-545-COM-M-BF / SPR-P6-550-COM-M-BF
| Type | Monocrystalline PERC |
| Power Range | 535W ~ 550W |
| Region | Mexico, Malaysia and the Philippines |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 10
| Model No. |
|
||||
|---|---|---|---|---|---|
| Warranty | |||||
| Product | 25-year Product Warranty on Materials and Workmanship | ||||
| Performance | 25-year Linear Power Performance Warranty to 87.20% | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) |
|
||||
| Voltage at Maximum Power (Vmpp) |
|
||||
| Current at Maximum Power (Impp) |
|
||||
| Open Circuit Voltage (Voc) |
|
||||
| Short Circuit Current (Isc) |
|
||||
| Panel Efficiency |
|
||||
| Power Tolerance (Positive) |
|
||||
| Electrical Data at NOCT | |||||
| Panel Efficiency |
|
||||
| Power Tolerance (Positive) |
|
||||
| Thermal Ratings | |||||
| Operating Temperature Range | −40°C to +85°C | ||||
| Temperature Coefficient of Pmax | –0.34% / °C | ||||
| Temperature Coefficient of Voc | -0.26 %/ °C | ||||
| Temperature Coefficient of Isc | 0.05% / °C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V IEC | ||||
| Series Fuse Rating | 25 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2384 x 1092 x 35mm | ||||
| Weight | 32.4 kg | ||||
| Cell Type | Monocrystalline PERC | ||||
| Glass Type | Heat strengthened glass | ||||
| Glass Thickness | 2.0mm | ||||
| Frame Type | Anodized Aluminum Alloy | ||||
| Junction Box Diodes | 3 bypass diodes | ||||
| Junction Box Protection Class | IP68 | ||||
| Connector Type | Renhe RHC2 or Zerun Z4S or Stäubli Evo2 | ||||
|
