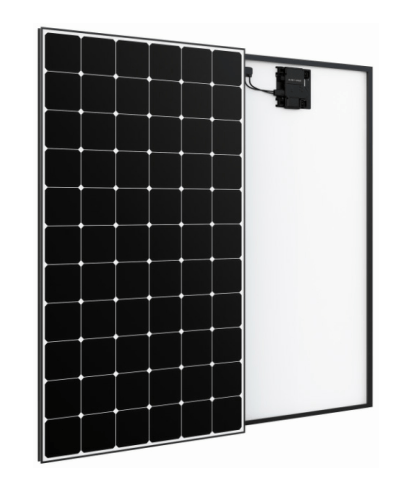

SUNPOWER Monocrystalline Maxeon 6 AC Module 410W ~ 425W | SPR-MAX6-410- BLK-E3-AC / SPR-MAX6-415- BLK-E3-AC / SPR-MAX6-425- BLK-E3-AC
| Type | Maxeon 6 |
| Power Range | 420W ~ 440W |
| Region | Mexico, Malaysia and the Philippines |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 08
| Model No. |
|
||||
|---|---|---|---|---|---|
| Warranty | |||||
| Product | 40-year Product Warranty on Materials and Workmanship / 25-year Product Warranty on Enphase Microinverter | ||||
| Performance | 40-year Linear Power Performance Warranty | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) |
|
||||
| Panel Efficiency |
|
||||
| Power Tolerance (Positive) |
|
||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) |
|
||||
| Panel Efficiency |
|
||||
| Power Tolerance (Positive) |
|
||||
| Temperature |
|
||||
| Thermal Ratings | |||||
| Operating Temperature Range | −40°C to +60°C | ||||
| Temperature Coefficient of Pmax | −0.27% / °C | ||||
| Temperature Coefficient of Voc | −0.29%/°C | ||||
| Temperature Coefficient of Isc | 0.058% / °C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1000 V IEC | ||||
| Series Fuse Rating | 20 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 1872 x 1032 x 40mm | ||||
| Weight | 21.8 kg | ||||
| Cell Type | Maxeon 6 | ||||
| Cell Number | 66 Maxeon 6 Cells | ||||
| Glass Type | High-transmission tempered anti-reflective | ||||
| Glass Thickness | 3.2mm | ||||
| Frame Type | Class 1 black anodized | ||||
| Junction Box Diodes | 3 bypass diodes | ||||
| Junction Box Protection Class | IP67 (UL: NEMA type 6) | ||||
| Connector Type | Stäubli (MC4) | ||||
|
