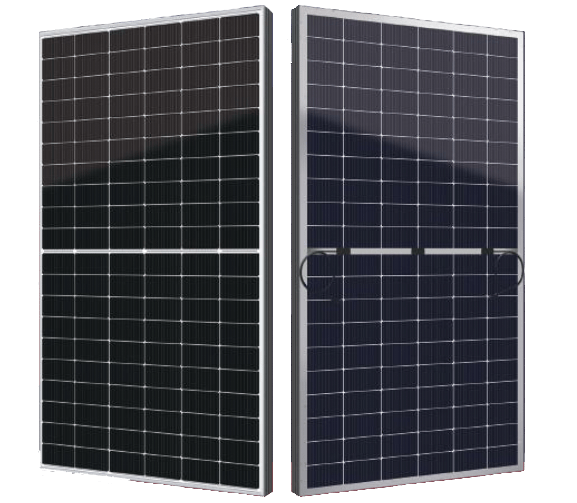

SERAPHIM SV Series PERC Monocrystalline Bifacial 655W ~ 670W | SRP-655-BMC-BG / SRP-660-BMC-BG / SRP-665-BMC-BG / SRP-670-BMC-BG

1 Ratings
Type PERC Monocrystalline
Power Range 655W ~ 670W
Region China
Model No.
SRP-655-BMC-BG SRP-660-BMC-BG SRP-665-BMC-BG SRP-670-BMC-BG
Warranty
Product 15-year Product Warranty on Materials and Workmanship
Performance 30-year Linear Power Performance Warranty to 84.95%
Electrical Data at STC
Maximum Power (Pmax)
655 WP 660 WP 665 WP 670 WP
Voltage at Maximum Power (Vmpp)
36.62 V 36.82 V 37.02 V 37.22 V
Current at Maximum Power (Impp)
17.89 A 17.93 A 17.97 A 18.01 A
Open Circuit Voltage (Voc)
43.7 V 43.9 V 44.1 V 44.3 V
Short Circuit Current (Isc)
19.09 A 19.14 A 19.19 A 15.55 A
Panel Efficiency
21.09 % 21.25 % 21.41 % 21.57 %
Power Tolerance (Positive)
(0, +4.99) W (0, +4.99) W (0, +4.99) W (0, +4.99) W
Electrical Data at NOCT
Maximum Power (Pmax)
492 WP 496 WP 500 WP 469 WP
Voltage at Maximum Power (Vmpp)
33.59 V 33.81 V 33.98 V 37.21 V
Current at Maximum Power (Impp)
14.65 V 14.69 A 14.72 A 12.61A
Open Circuit Voltage (Voc)
40.8 V 41.0 V 41.19 V 44.0 A
Short Circuit Current (Isc)
15.43 A 15.47 A 15.51 A 13.56 A
Panel Efficiency
21.09 % 21.25 % 21.41 % 21.57 %
Power Tolerance (Positive)
(0, +4.99) W (0, +4.99) W (0, +4.99) W (0, +4.99) W
Temperature
45°C±2°C 45°C±2°C 45°C±2°C 45°C±2°C
Thermal Ratings
Operating Temperature Range −40°C - +85°C
Temperature Coefficient of Pmax -0.34 %/°C
Temperature Coefficient of Voc -0.26 %/°C
Temperature Coefficient of Isc +0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500VDC
Series Fuse Rating 30 A
Material Data
Panel Dimension (H/W/D) 2384 x 1303 x 35mm
Weight 38.5 kg
Cell Type PERC Monocrystalline
Cell Number 132 monocrystalline cells
Glass Type AR coating semi-tempered glass, low iron
Glass Thickness 2.0mm (front) + 2.0mm (back)
Frame Type Anodized aluminium alloy
Junction Box Diodes 3 diodes
Junction Box Protection Class IP68
Connector Type Genuine MC4
