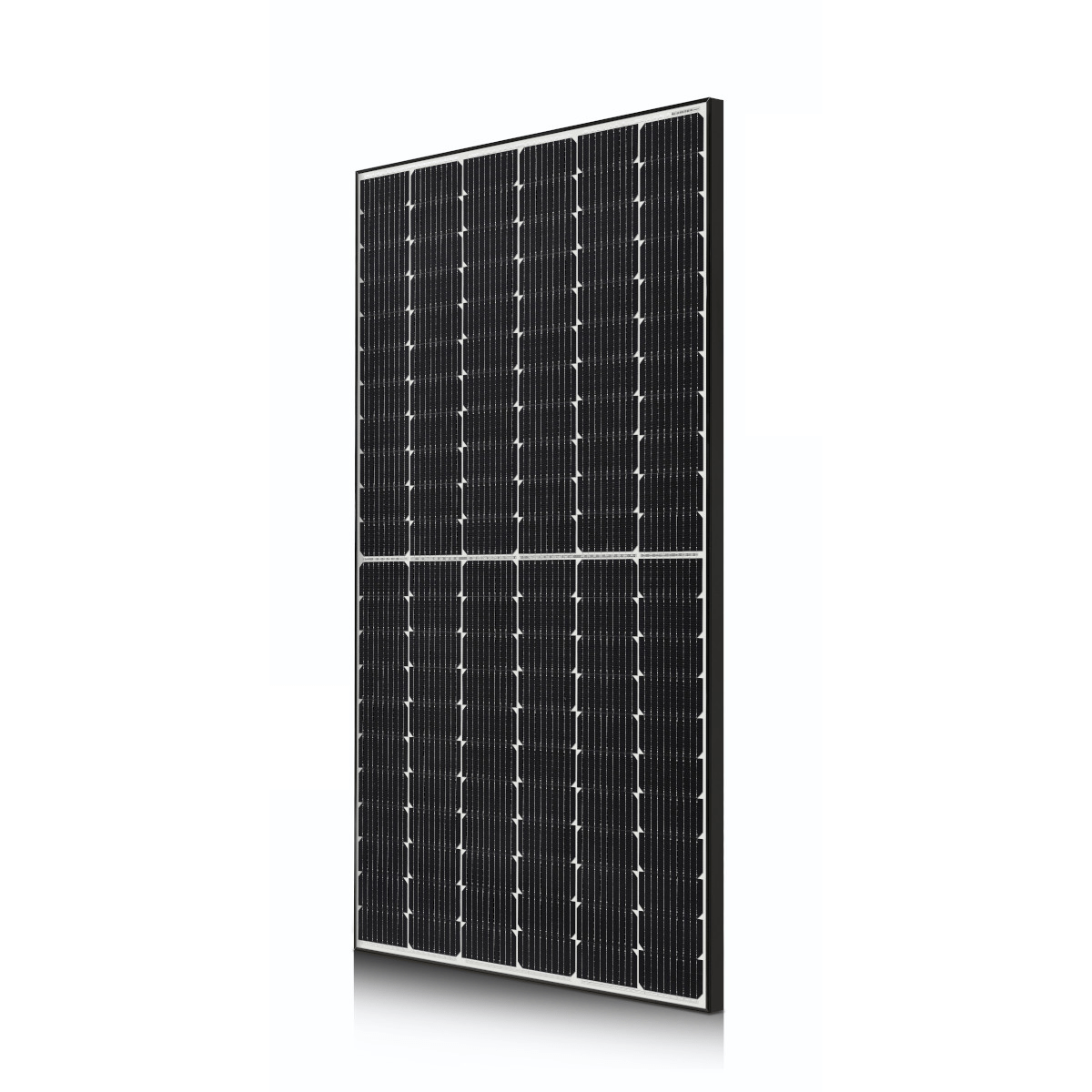

LG NeON H+ Monocrystalline Black Frame Module | LG415N3C-V6
| Type | Monocrystalline / N-type |
| Power Range | 415W |
| Region | South Korea |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 September 09
| Model No. |
|
|
|---|---|---|
| Warranty | ||
| Product | 25-year Product Warranty on Materials and Workmanship | |
| Performance | 25-Year Linear Performance Warranty to 90.60% | |
| Electrical Data at STC | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Electrical Data at NOCT | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Temperature |
|
|
| Thermal Ratings | ||
| Operating Temperature Range | -40℃~+85℃ | |
| Temperature Coefficient of Pmax | -0.33 %/°C | |
| Temperature Coefficient of Voc | -0.26 %/°C | |
| Temperature Coefficient of Isc | 0.04 %/°C | |
| Maximum Ratings | ||
| Maximum System Voltage | 1000V(IEC) | |
| Series Fuse Rating | 20A | |
| Material Data | ||
| Panel Dimension (H/W/D) | 1880 x 1042 x 40 mm | |
| Weight | 19.7kg | |
| Cell Type | Monocrystalline / N-type | |
| Cell Number | 132 Cells (6 x 22) | |
| Glass Type | Tempered Glass with AR Coating | |
| Glass Thickness | 3.2 mm (0.13 inches) | |
| Frame Type | Anodised aluminum | |
| Junction Box Diodes | 3 bypass diodes | |
| Junction Box Protection Class | IP 68 | |
| Connector Type | Genuine MC4, IP68 (Male: PV-KST4)(Female: PV-KBT4) | |
|
