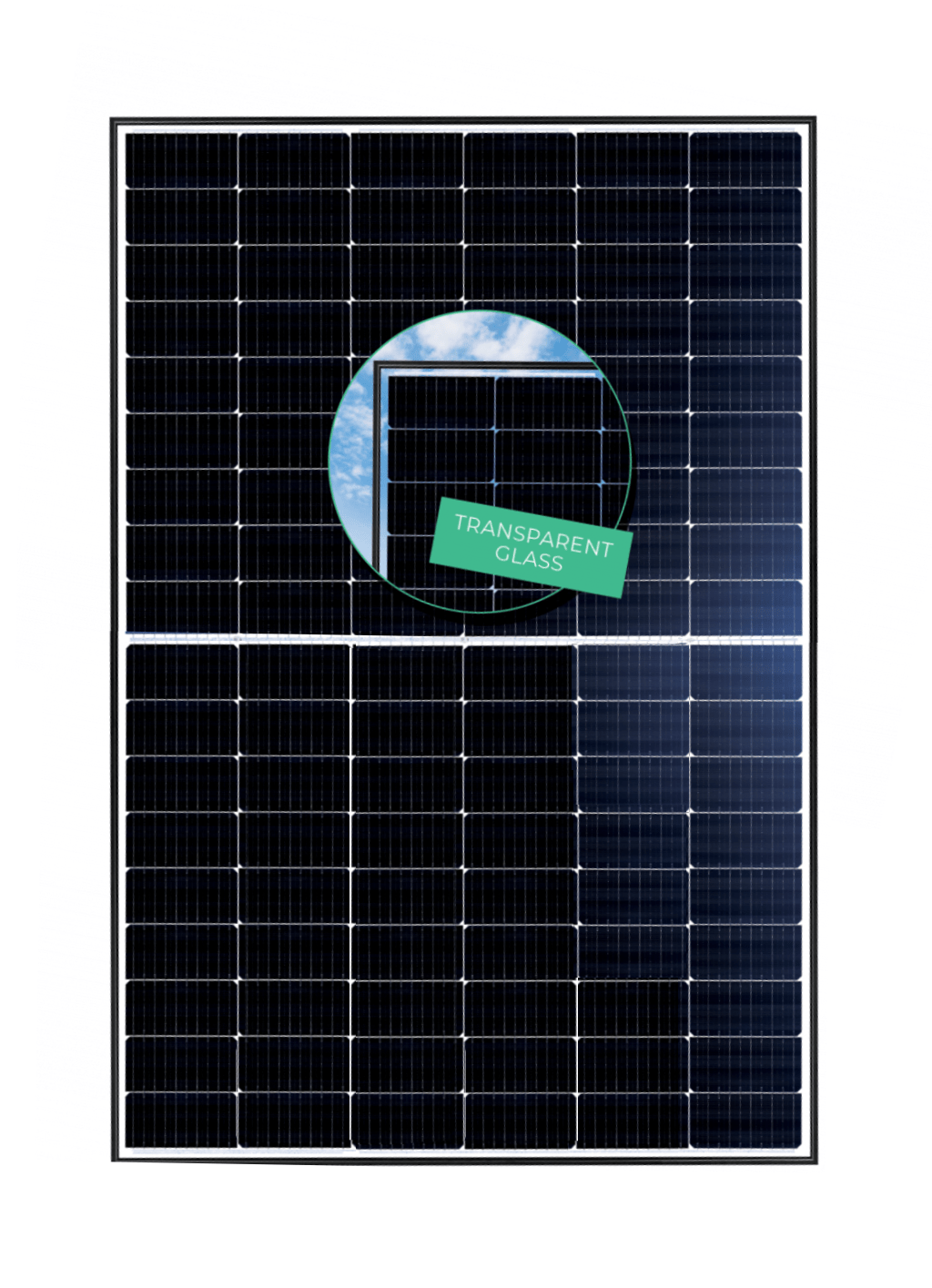

SUMEC PHONO SOLAR Diamond Dual Glass Bifacial Monocrystalline Module 390W | PS390M7GF-18/VH - PS390M7GFH-18/VH
| Type | Monocrystalline |
| Power Range | 390W |
| Region | China |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 August 12
| Model No. |
|
|
|---|---|---|
| Warranty | ||
| Product | 25-year Product Warranty applies to Residential System Installations. Commercial System Installations are eligible for 15 year Product Warranty. | |
| Performance | 30-year linear performance warranty to 84.95% at year 30. This amounts to 2% degradation in the first year, 0.45% annually. | |
| Electrical Data at STC | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Electrical Data at NOCT | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Temperature |
|
|
| Thermal Ratings | ||
| Operating Temperature Range | From -40 to +85°C | |
| Temperature Coefficient of Pmax | -0.350%/°C | |
| Temperature Coefficient of Voc | -0.28%/°C | |
| Temperature Coefficient of Isc | +0.048%/°C | |
| Maximum Ratings | ||
| Maximum System Voltage | DC 1000V/1500V | |
| Series Fuse Rating | 30A | |
| Material Data | ||
| Panel Dimension (H/W/D) | Length: 1724mm, Width: 1134mm Height: 35mm | |
| Weight | 24.7kg | |
| Cell Type | Monocrystalline | |
| Cell Size | 182mm x 91 mm | |
| Glass Type | Toughened solar glass, coated tempered glass | |
| Glass Thickness | 2.0mm + 2.0mm | |
| Frame Type | Black anodised aluminium alloy | |
| Junction Box Protection Class | IP 68 rated | |
| Connector Type | 4mm2 (IEC), 1150mm cable length; MC4-EVO 2 (1500V) | |
|
