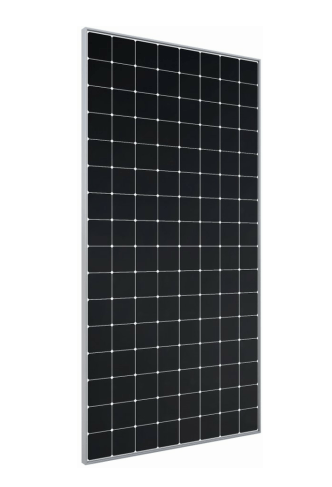

SUNPOWER X-Series Maxeon Gen 3 Monocrystalline 480W ~ 485W | SPR-X22-480-COM / SPR-X22-485-COM
| Type | Monocrystalline Maxeon Gen III |
| Power Range | 480W ~ 485W |
| Region | Mexico, Malaysia and the Philippines |
Solarmarkit Team
Verified Review
Solarmarkit believes in the power of a positive start. With this, all products are given a single five-star rating as a welcome gift from our team. If you are happy with a purchase, feel free to give the second five-star rating to our certified solar products. Published2022 October 11
| Model No. |
|
||
|---|---|---|---|
| Warranty | |||
| Product | 25-year Product Warranty on Materials and Workmanship | ||
| Performance | 25-year Linear Power Performance Warranty to 92.50% | ||
| Electrical Data at STC | |||
| Maximum Power (Pmax) |
|
||
| Voltage at Maximum Power (Vmpp) |
|
||
| Current at Maximum Power (Impp) |
|
||
| Open Circuit Voltage (Voc) |
|
||
| Short Circuit Current (Isc) |
|
||
| Panel Efficiency |
|
||
| Power Tolerance (Positive) |
|
||
| Electrical Data at NOCT | |||
| Panel Efficiency |
|
||
| Power Tolerance (Positive) |
|
||
| Thermal Ratings | |||
| Operating Temperature Range | −40°C - +85°C | ||
| Temperature Coefficient of Pmax | −0.27% / °C | ||
| Temperature Coefficient of Voc | −0.236% / °C | ||
| Temperature Coefficient of Isc | 0.058% / °C | ||
| Maximum Ratings | |||
| Maximum System Voltage | 1500 V UL & 1500 V IEC | ||
| Series Fuse Rating | 15 A | ||
| Material Data | |||
| Panel Dimension (H/W/D) | 2067 x 1046 x 46mm | ||
| Weight | 56 lbs (25.4 kg) | ||
| Cell Type | Monocrystalline Maxeon Gen III | ||
| Cell Number | 128 Monocrystalline Maxeon Gen III | ||
| Glass Type | High-transmission tempered anti-reflective | ||
| Glass Thickness | 3.2mm | ||
| Frame Type | Class 2 silver anodized; stacking pins | ||
| Junction Box Diodes | 3 bypass diodes | ||
| Junction Box Protection Class | IP-65 | ||
| Connector Type | Stäubli MC4 | ||
|
